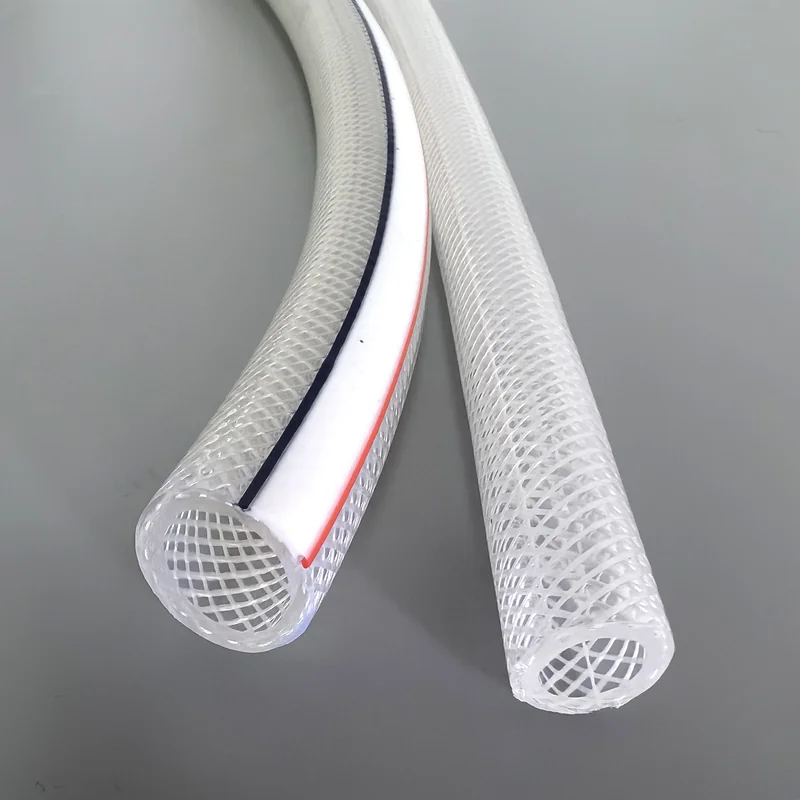

PVC Clear Fiber Reinforced Hose
PVC Fiber Reinforced Hoses
Transparent PVC hose reinforced with high-tensile polyester yarn, offering excellent flexibility, clarity and pressure resistance. Ideal for water, oil and gas conveyance in factory, farm, ship, building and household applications.
| Working Temperature | -5°C ~ 65°C |
| MOQ | 500 rolls |
| Lead Time | 15-25 days |

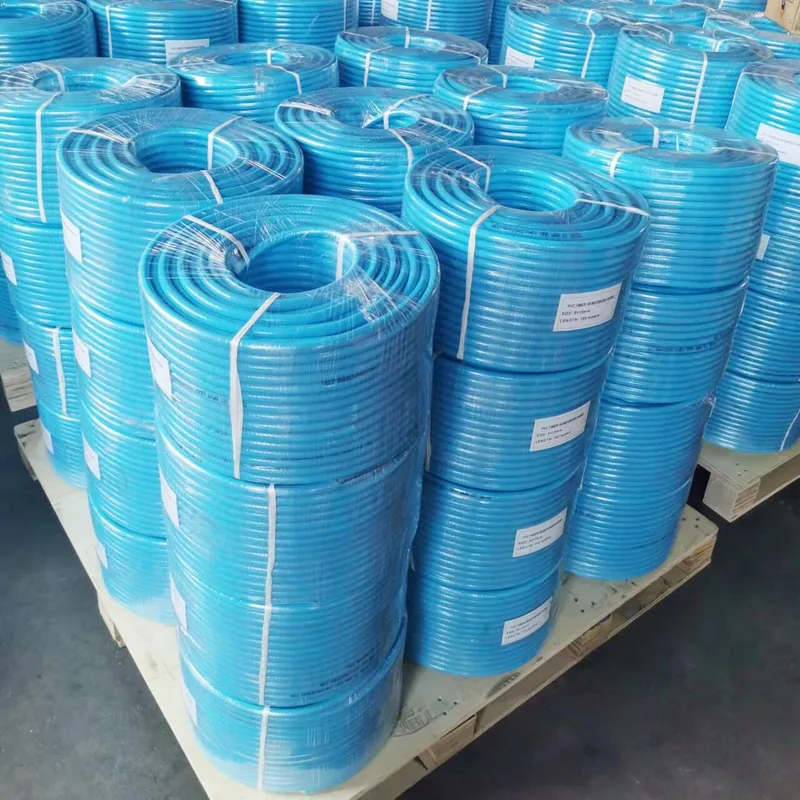

| Packaging | Plastic film wrapped rolls, carton or pallet |
| Customization | Color, size, length, logo printing available |
Applications
- Conveying water, oil and gas under normal working conditions
- Factory, farm, ship, building and household use
- Agricultural irrigation and drainage
- Industrial water and air delivery
Characteristics
- Flexible, transparent and durable
- Anti-erosion, adaptable to high pressure
- Colorful symbol lines on surface for better appearance
- Smooth inner bore for low flow resistance
Specifications
| Item No. | Inch | I.D. (mm) | O.D. (mm) | Length (m/roll) | Pressure (MPa) | Weight (kg/roll) |
|---|---|---|---|---|---|---|
| KR-5X2 | 13/64 | 5 | 9 | 170 | 1.2 | 10 |
| KR-6X2 | 1/4 | 6 | 10 | 148 | 1.2 | 10 |
| KR-6X2.5 | 1/4 | 6 | 11 | 112 | 1.2 | 10 |
| KR-6X3 | 1/4 | 6 | 12 | 88 | 1.2 | 10 |
| KR-8X2 | 5/16 | 8 | 12 | 118 | 1.2 | 10 |
| KR-8X2.5 | 5/16 | 8 | 13 | 90 | 1.2 | 10 |
| KR-8X3 | 5/16 | 8 | 14 | 72 | 1.1 | 10 |
| KR-9X2 | 3/8 | 9 | 13 | 108 | 1.1 | 10 |
| KR-9X2.5 | 3/8 | 9 | 14 | 83 | 1.1 | 10 |
| KR-10X2 | 13/32 | 10 | 14 | 100 | 1.1 | 10 |
| KR-10X2.5 | 13/32 | 10 | 15 | 76 | 1.1 | 10 |
| KR-10X3 | 13/32 | 10 | 16 | 61 | 1.1 | 10 |
| KR-12X2 | 1/2 | 12 | 16 | 169 | 0.8 | 20 |
| KR-12X2.5 | 1/2 | 12 | 17 | 130 | 0.8 | 20 |
| KR-12X3 | 1/2 | 12 | 18 | 105 | 0.9 | 20 |
| KR-13X2 | 1/2 | 13 | 17 | 158 | 0.8 | 20 |
| KR-13X2.5 | 1/2 | 13 | 18 | 122 | 0.8 | 20 |
| KR-13X3 | 1/2 | 13 | 19 | 99 | 0.9 | 20 |
| KR-14X2.5 | 35/64 | 14 | 19 | 115 | 0.8 | 20 |
| KR-14X3 | 35/64 | 14 | 20 | 93 | 0.8 | 20 |
| KR-15X2 | 9/16 | 15 | 19 | 138 | 0.8 | 20 |
| KR-15X2.5 | 9/16 | 15 | 20 | 108 | 0.8 | 20 |
| KR-15X3 | 9/16 | 15 | 21 | 87 | 0.9 | 20 |
| KR-16X2 | 5/8 | 16 | 20 | 131 | 0.7 | 20 |
| KR-16X2.5 | 5/8 | 16 | 21 | 102 | 0.7 | 20 |
| KR-16X3 | 5/8 | 16 | 22 | 83 | 1 | 20 |
| KR-18X3 | 45/64 | 18 | 24 | 75 | 0.8 | 20 |
| KR-19X2 | 3/4 | 19 | 23 | 112 | 0.6 | 20 |
| KR-19X2.5 | 3/4 | 19 | 24 | 88 | 0.7 | 20 |
| KR-19X3 | 3/4 | 19 | 25 | 72 | 0.8 | 20 |
| KR-19X3.5 | 3/4 | 19 | 26 | 60 | 0.9 | 20 |
| KR-20X2.5 | 25/32 | 20 | 25 | 84 | 0.7 | 20 |
| KR-20X3 | 25/32 | 20 | 26 | 68 | 0.7 | 20 |
| KR-20X3.5 | 25/32 | 20 | 27 | 58 | 0.8 | 20 |
| KR-22X4 | 55/64 | 22 | 30 | 46 | 0.8 | 20 |
| KR-25X2.5 | 1 | 25 | 30 | 69 | 0.5 | 20 |
| KR-25X3 | 1 | 25 | 31 | 56 | 0.6 | 20 |
| KR-25X3.5 | 1 | 25 | 32 | 47 | 0.6 | 20 |
| KR-32X3.5 | 1-1/4 | 32 | 39 | 57 | 0.5 | 30 |
| KR-32X4 | 1-1/4 | 32 | 40 | 49 | 0.6 | 30 |
| KR-32X4.5 | 1-1/4 | 32 | 41 | 43 | 0.6 | 30 |
| KR-38X3.5 | 1-1/2 | 38 | 45 | 49 | 0.5 | 30 |
| KR-38X4 | 1-1/2 | 38 | 46 | 42 | 0.5 | 30 |
| KR-38X4.5 | 1-1/2 | 38 | 47 | 37 | 0.6 | 30 |
| KR-45X5 | 1-3/4 | 45 | 55 | 47 | 0.5 | 50 |
| KR-50X4 | 2 | 50 | 58 | 55 | 0.4 | 50 |
| KR-50X4.5 | 2 | 50 | 59 | 48 | 0.5 | 50 |
| KR-50X5 | 2 | 50 | 60 | 43 | 0.5 | 50 |
| KR-50X6 | 2 | 50 | 62 | 35 | 0.6 | 50 |
| KR-64X7 | 2-33-/64 | 64 | 78 | 24 | 0.5 | 50 |
| KR-75X7.5 | 3 | 75 | 90 | 20 | 0.5 | 50 |
